The Insights™ Query Builder is an interactive tool set for creating and executing textual queries that helps you become familiar with the syntax of the Quantum API. The following query explains how to use the Query Builder by providing a sample query you can try.

What is the ceiling height of the zones in My First Project?

Buildings typically have default ceiling height values during creation, which you can edit. You can view that data in Insights.

The following procedure shows how to build a sample query for viewing that information using the visual interface of the Query Builder. For brevity, this procedure assumes you are familiar with the features shown in the previous sample query, using an example site named My First Project which you may have by default in some new accounts.

To query the ceiling height of the zones in My First Project:

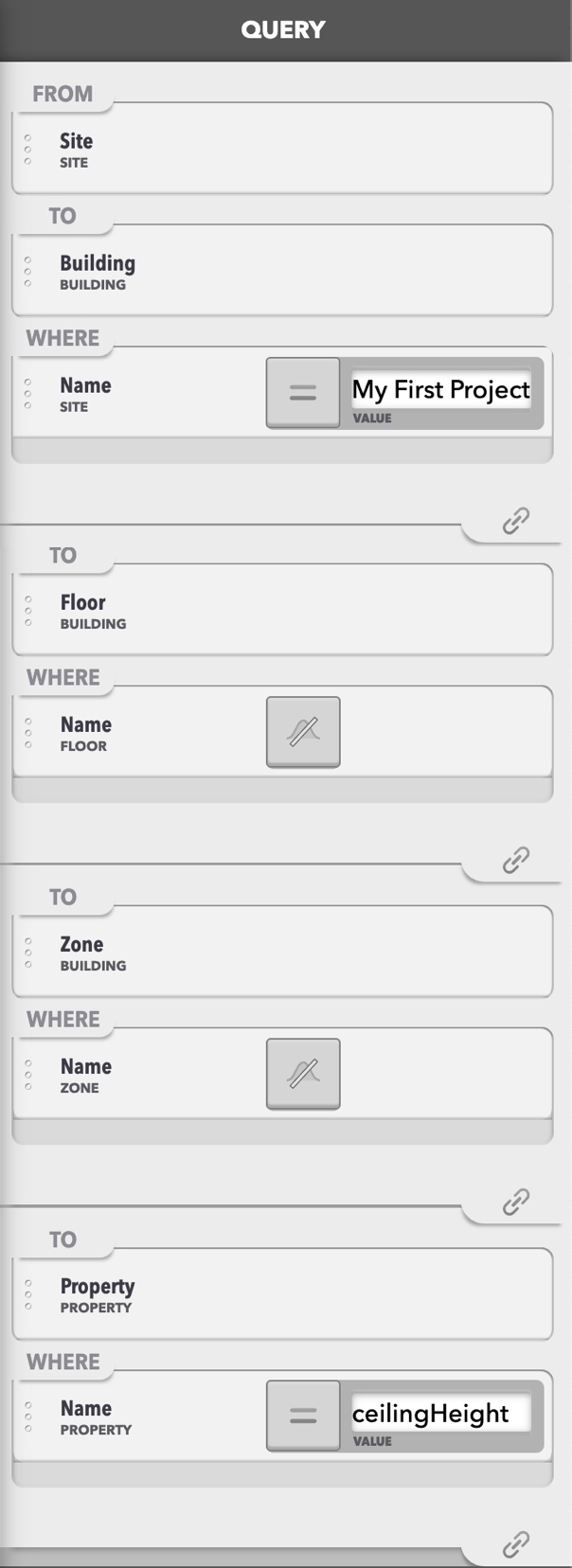

1. In the Query Builder, create this query:



   Use the following actions to do so. Make sure to scroll through the whole table:

   From domain	Drag	To this tray
   Site	Site object	From
   Building	Building object	To
   Site	Site object > Name attribute	Where From select Equal. Type My First Project.
   Click chain to add a query chain.
   Building	Floor object	To
   Building	Floor object > Name attribute	Where
   Click chain to add a query chain.
   Building	Zone object	To
   Building	Zone object > Name attribute	Where
   Click chain to add a query chain.
   Property	Property object	To
   Property	Property object > Name attribute	Where From select Equal. Type ceilingHeight. (Field is case sensitive.)




2. Click Run Query to see the ceilingHeight attribute for the zones in My First Project.

   The Query Builder generates the text of the query string for you. You can copy or edit it in the first field of the GraphiQL Query panel, and it is saved in your query History .

query{
 sites(where:{name:{contains:"My First Project"}},){
  name
  buildings{
   ID
   floors{
    ID
    name
    zones{
     ID
     name
     properties(where:{name:{contains:"ceilingHeight"}},){
      ID
      name
      description
      notes
      locked
      currentValue
      isError
      isImmutable
      isNullValue
      sourceQuality
      symbol
     }
    }
   }
  }
 }
}

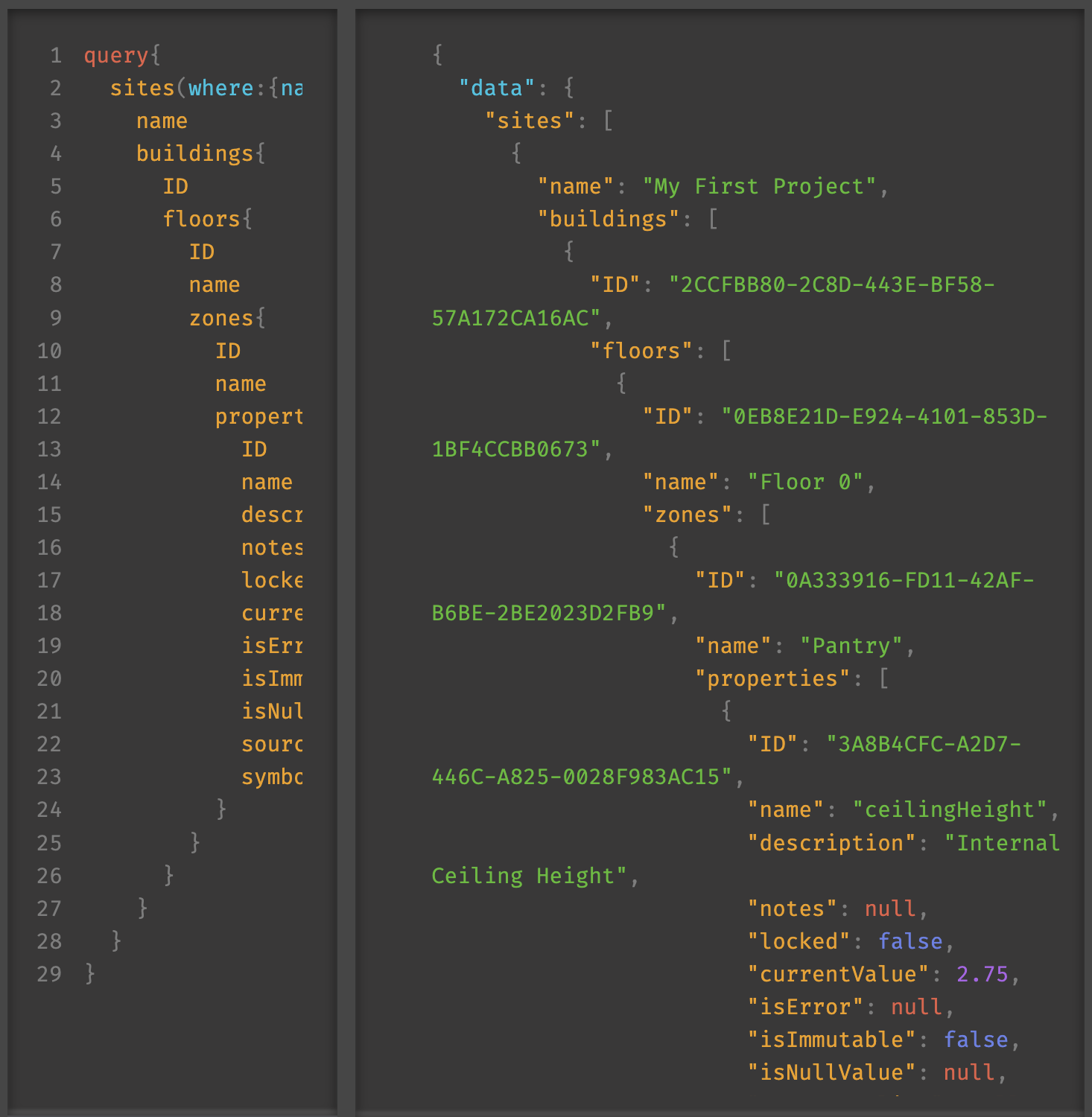

The query results look similar to this example:

More Query Builder examples

The examples linked below explain how to query by using the visual Query Builder as well as by editing the query string yourself.

• What zones are on the ground floor?
• What is the list of doors in each zone?
