Once you sign in to the PassiveLogic Lens app, you can view and interact with your digital twin.

This section shows how to navigate and complete some basic tasks in Lens including:

• Navigating portfolios, buildings, and floors
• Locating the Sense Nano sensors in your digital twin building model

Navigating portfolios, buildings, and floors

To view Sense Nano sensor locations and status in the Lens app:

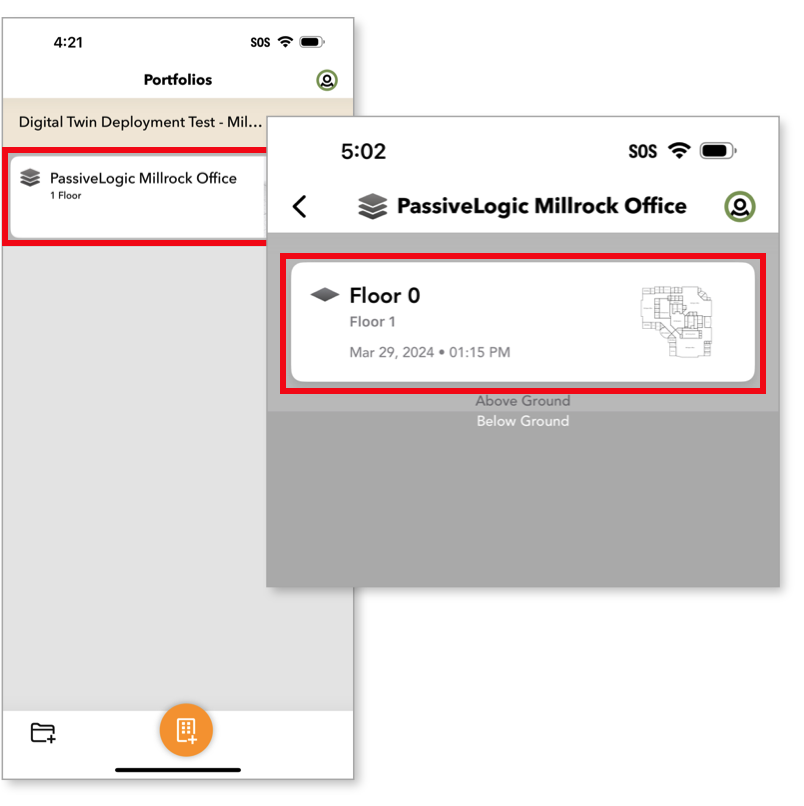

1. On the Portfolios screen, if you don’t see the your digital twin building, tap your portfolio to expand it.
2. Tap the digital twin building to open the Building view screen showing a list of the floors in your building.
3. Tap the floor you would like to view.

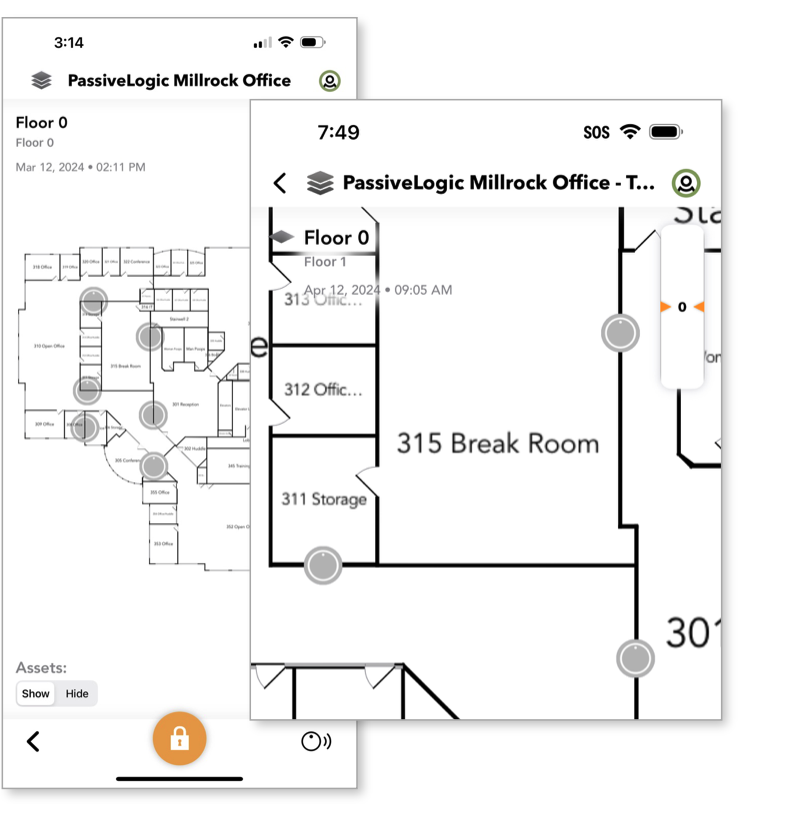

   This will open the floor plan and indicate where the Sense Nano sensors are placed in the digital twin building model (which indicates where they need to be physically installed).
   In iOS, you can pinch to zoom (move two fingers apart or together on the screen to zoom in or out).

   The Sense Nano icons will all be gray at this stage if they have not been installed yet and are currently not commissioned. The color of the icons indicates their current status.

Tip: For sensor and sync icon details, see the next section “Sensor and profile icon states in Lens.”



Sensor and profile icon states

Sense Nano status states

 Gray: Not commissioned

 Orange/gray:  Commissioned/not connected

Orange: Commissioned/connected, broadcasting live data (for 5 minutes to your iPhone)

 Orange Halo: Currently selected Nano, connected/not connected

The profile icon at the top right of any screen also indicates QuantumSync data status state.

Profile icon data sync status states

 Gray: Lens is offline

 Yellow/circling: Data is syncing to the cloud

 Green: Data successfully synced to the cloud, not currently syncing

 Red: Data sync failure, Lens may be online but cannot sync

Sense Nano digital twin examples

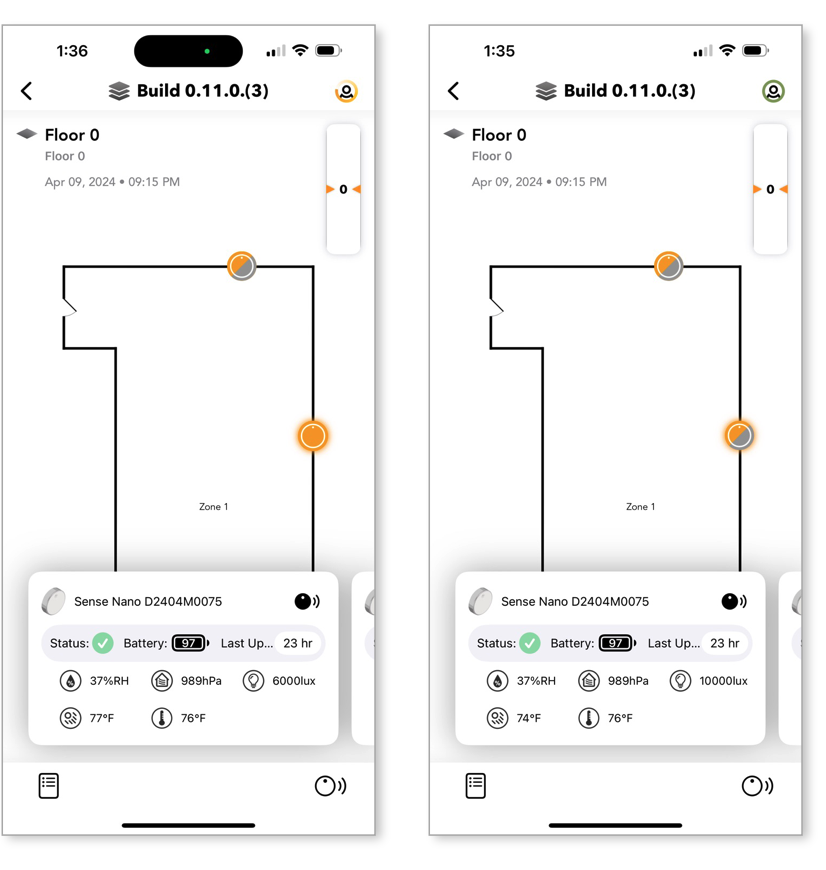

In the screenshot on the left, the middle right Sense Nano sensor is selected, as indicated by the orange halo, and it is connected to the phone, indicated by the all-orange icon.

The sensor card at the bottom of the screen shows live data for the selected sensor. The spinning yellow User profile icon indicates it is transmitting and syncing data to the cloud.

In the screenshot on the right, the same Sense Nano sensor is still selected, as indicated by the orange halo, but the orange/gray icon color indicates it is commissioned and is currently not connected to the phone. The card shows the last data pulled from the the selected sensor. The green User profile icon indicates data is current and the phone is not currently syncing.
